Hino L7
The Hino L7, a versatile Class 7 truck, combines power, robustness and maneuverability to meet the intermediate needs of commercial transport.
Built in Canada, the Hino L7 is ideal for professionals who demand performance and reliability in urban, regional or on-site environments.
Available from Hino Rive-Sud, the Hino L7 is ready to take on all your professional challenges with a powerful Cummins B6.7 engine, Allison 2500 RDS automatic transmission and hydraulic or pneumatic braking options.
Summary of specifications and main features of the Hino L7
| Features | Detail |
|---|---|
| Class | Class 7 |
| Configuration | 4x2 |
| Cabin | Day cab (3 seats) or extended cab (5 seats) |
| Engine | Cummins B6.7, 6 in-line cylinders, 6.7 L |
| Power | 260 hp |
| Torque | 660 lb-ft |
| Transmission | Allison 2500 RDS 6-speed automatic |
| GVWR | 33,000 lb (14,969 kg) |
| PNBC (GCWR) | 33,000 lb (14,969 kg) |
| Wheelbase | 175" to 281" (several wheelbases available) |
| Brakes | Air with ABS, drum brakes (discs optional) |
| Fuel tank | 50 gal (189 L) or 90 gal (340 L) |
| Rear suspension | Multi-leaf or Hendrickson air springs |
| Cabin comfort | 7" touch screen, Bluetooth, air conditioning, driver's seat with suspension, digital controls |
| Safety | ESC, collision detection system, adaptive cruise control, brake assist |
| Typical use | Towing, bucket trucks, specialized vehicles, heavy delivery |
| Wheelbase (in.) | 187 in. | 205 in. | 217 in. | 235 in. | 253 in. | 271 in. |
|---|---|---|---|---|---|---|
| Chassis weight of the Hino L7 | 4,561 kg (10,055 lbs) | 4,620 kg (10,185 lbs) | 4,640 kg (10,230 lbs) | 4,670 kg (10,295 lbs) | 4,785 kg (10,545 lbs) | 4,795 kg (10,571 lbs) |
| CA (Cab to axle) of the Hino L7 | 119.6" (3038 mm) | 137.6" (3495 mm) | 149.6" (3800 mm) | 167.6" (4257 mm) | 185.6" (4714 mm) | 203.6" (5171 mm) |
| Total length of Hino L7 | 306.6 in. | 324.6 in. | 336.6 in. | 354.6 in. | 372.6 in. | 390.6 in. |
Engine specifications Hino L7
The Hino L7 ‘s 6.7L, 6-cylinder Cummins B6.7 engine delivers the power you need to efficiently handle all your intermediate tasks.
guarantees exceptional reliability and reduced fuel consumption. Tried and tested with over 13 million engines produced over almost 40 years!
Available in the maximum power configurations of the L Series, it adapts precisely to your activity, enabling you to make significant savings on fuel while still benefiting from sufficient power to transport your loads efficiently.
Motorization and performance | ||
|---|---|---|
260 hp (optional)
| ||
660 lb-ft of torque
| ||
Emissions standard
| ||
EPA 2021 (SCR + EGR)
| ||
The Cummins B6.7 engine in the Hino L7 is designed to combine power and robustness, this engine offers optimized fuel consumption, ideal for demanding operations.
The transmission of Hino L7
Equipped with an Allison 2500RDS automatic transmission, the Hino L7 offers a smooth, comfortable and precise ride, essential for frequent maneuvers in urban or regional environments.
Thanks to itsoptimized axle configuration, the vehicle offers excellent maneuverability, making it easy to maneuver in narrow streets or cramped loading bays.
Transmission and driving experience | |||
|---|---|---|---|
Allison 2500 RDS transmission
|
Allison 2500 HS transmission
| ||
6-speed automatic transmission (standard)
|
Optimized for improved fuel economy (Optional for long wheelbases)
| ||
Hino L7 differential ratio: 5.57
| |||
Please note: The Allison transmission includes modern features such as Neutral at Stop and Adaptive Throttle Management, designed to improve fuel economy and smooth operation.
Load capacity to suit market requirements
With its high-strength steel chassis (80,000 psi) as standard, the Hino L7 guarantees exceptional durability and can accommodate various types of bodywork (construction equipment, vans, tankers, etc.).
GVWR
|
PNBC
|
Axle configuration
|
Front axle capacity
|
Rear axle capacity
|
Wheelbase
|
Cabin type available
|
33,000 lb (14,950 kg)
|
33,000 lb (14,950 kg)
|
4 X 2
|
12,000 lbs
|
21,000 lbs
|
187"| 205"| 217"| 235"| 253"| 271"
|
Day Cab (standard, 3-seater)
|
Hino L7 truck dimensions | |||||||
|---|---|---|---|---|---|---|---|
Wheelbase (in.) Hino L7
|
187 in.
|
205 in.
|
217 in.
|
235 in.
|
253 in.
|
271 in.
| |
CA (Cab to Axle) Hino L7
|
119.6 in (3038 mm)
|
137.6 in (3495 mm)
|
149.6 in (3800 mm)
|
167.6 in (4257 mm)
|
185.6 in (4714 mm)
|
203.6 in (5171 mm)
| |
Total length of Hino L7
|
306.6 in.
|
324.6 in.
|
336.6 in.
|
354.6 in.
|
372.6 in.
|
390.6 in.
| |
Frame height Hino L7 | |||||||
|---|---|---|---|---|---|---|---|
Tires
|
Wheels
|
Frame height
| |||||
11R22.5
|
22.5 X 8.25-168
|
38.1 in.
| |||||
295/75R22.5
|
37.3 in.
| ||||||
The Hino L7 chassis can be further reinforced (standard 80,000 psi steel side members, thicker section to support 33,000 lbs of load).
Make an appointment with a Hino consultant today
Come and discover the Hino L7 at Hino Rive-Sud in Boucherville for a test drive and see the different configurations available to meet your needs.

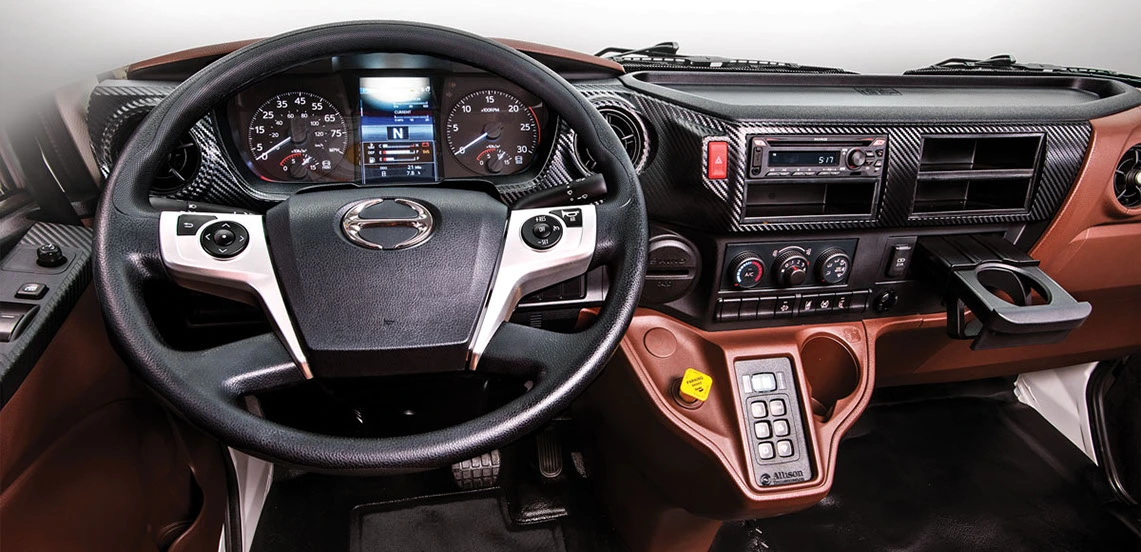

Technologies and top-of-the-range comfort
Because operator comfort is essential to productivity, the Hino L7 is equipped with the latest technology.
Click on the +
to discover the elements:
Digital instrument panel with LED display
Air conditioning
Electric mirror control
Heated mirrors
Telescopic, height-adjustable steering wheel
Cruise control
AM/FM audio system with Bluetooth
USB charging port in dashboard
Allison 2500 RDS transmission
Retractable goblet holder
Why choose the Hino L7?
The Hino L7 is the benchmark for Class 7 trucks. Its high-performance engine, robust design and state-of-the-art equipment make it an indispensable ally for professionals.
- OnGuardACTIVE™ system - Automatic emergency braking in the event of an obstacle
- OnLaneALERT™ lane departure warning - to avoid unintentional swerving
- Dashboard with multifunction display 7-showing essential information
- Driver's seat with air suspension - for optimum comfort.
- Hino Insight fleet management system - telemetry and remote diagnostics
The Hino L7 in Boucherville represents a sound investment for your business, thanks to its versatility, robustness and low operating costs. Its Canadian manufacture guarantees quality, proximity of parts and excellent after-sales service.
Hino L7
Active safety at all times
The Hino L7 incorporates the best technologies to ensure the safety of drivers and goods:
OneLaneALERT™
Lane departure warning
An available camera-based system that helps mitigate lane departure, sideways thrust and head-on collisions due to driver inattention or fatigue, with audible warnings to indicate accidental lane departure.
Electronic stability control
Automatically intervenes when there is a high risk of directional instability that could result in loss of vehicle control or a rollover.
OneGuardACTIVE™
Collision avoidance system
The available radar-based collision avoidance system provides active braking of moving and stationary vehicles – in all visibility conditions.
Call us at (450) 641-1115 for more information
A Hino truck with exceptional service and warranty!
When you buy a truck from the Hino Rive-Sud dealer in Boucherville, you benefit from the renowned after-sales service of
Groupe National Hino Rive-Sud, including :
Extended opening hours
Our SAAQ heavy vehicle repair and inspection center is open Monday to Friday.
- Services and rooms: 7 a.m. to 6 p.m.
- Garage and mechanics: 7 a.m. to midnight
Service and maintenance
Inspections
Repairs
Periodic maintenance by our Hino-certified technicians
24/7 road service
Assistance throughout the province of Quebec to minimize your downtime
Financing and warranty Hino L7
At Hino Rive-Sud Boucherville, we know that buying a truck is a major investment. That’s why we offer flexible financing options tailored to your business.
- Personalized financing with competitive rates
- Purchase and leasing available with maintenance included
- 5-year transmission warranty / unlimited mileage
- Cummins 3-year engine warranty / unlimited mileage
- 24/7 roadside assistance included with every purchase
